Funiture Door Surface Covering Vacuum Press Machine
  • Air ProFuniture Door Surface Covering Vacuum Press Machine

Funiture Door Surface Covering Vacuum Press Machine

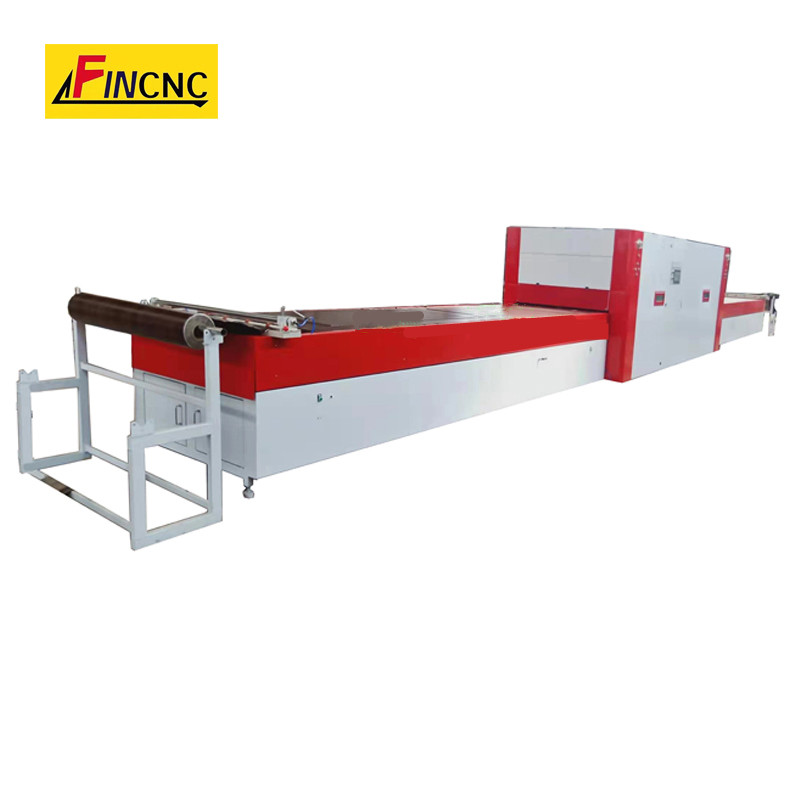

Funiture door surface covering vacuum press machine can do two doors one time,Quickly making door.fast speed,save times.

Send Inquiry

Product Description

1.Product Introduction of the Funiture door surface covering vacuum press machine

This Funiture door surface covering vacuum press machine can be used to paste PVC on two doors one time, this machine’s speed is fast than traditional machine.


2.Product Parameter (Specification) of the Funiture door surface covering vacuum press machine

Working surface

5000×1100×40mm

Pressure

Vacuum≥-0.095Mpa

Dimension

15080×2140×2000mm

Power

25kW

Weight

2T

Voltage

380V 50HZ  (Can order)

Warranty

1 year



3.Product Feature And Application of the Funiture door surface covering vacuum press machine

1.The funiture door surface covering vacuum press machine adopts automatic digital display technology, the machine features highly automatic, easy operation and reliable.
2.Working platform is made of special steel, which is resistant to high temperature and corruption.
3.Use infrared heating system and imported thermal insulation material, which can ensure even heating and energy saving.
4.The funiture door surface covering vacuum press machine uses top quality vacuum pump, features reliable performance and prompt pumping.
5.Mufti-application, PVC film, Wood veneer and hot transfer is available.

Funiture Door Surface Covering Vacuum Press Machine



4.Product Details of the Funiture door surface covering vacuum press machine

1)Heating system:The Funiture door surface covering vacuum press machine use aluminium bars infrared heating system.

Funiture Door Surface Covering Vacuum Press Machine


2)Vacuum pump:The vacuum pump of the Funiture door surface covering vacuum press machine is very big pump 160/m3.The speed is so fast.

Funiture Door Surface Covering Vacuum Press Machine

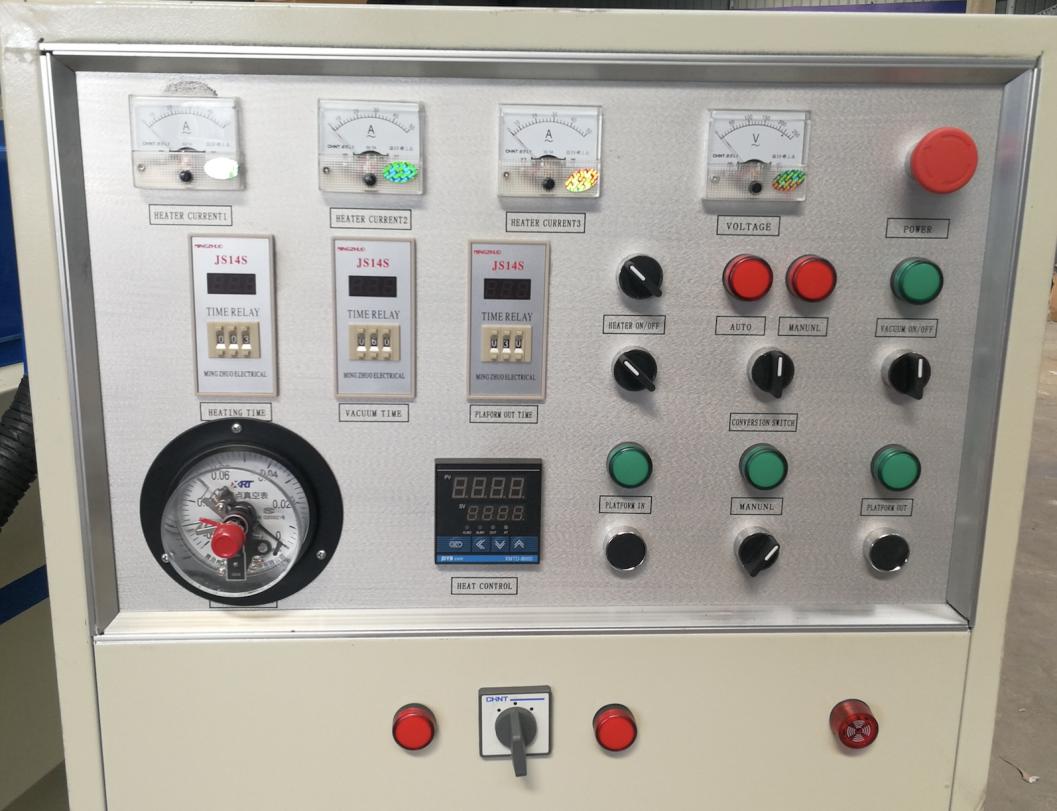

3)Control system:Operation system is PLC, it easy control.

Funiture Door Surface Covering Vacuum Press Machine


4)PVC support:The Funiture door surface covering vacuum press machine has two PVC Support can put roll of PVC.

Funiture Door Surface Covering Vacuum Press Machine



5.Product Qualification of the Funiture door surface covering vacuum press machine

The Funiture door surface covering vacuum press machine e  with CE certificate.

Funiture Door Surface Covering Vacuum Press Machine



6.Deliver,Shipping And Serving of the Funiture door surface covering vacuum press machine

The standard packing of the Funiture door surface covering vacuum press machine  is foam,can order wooden box .

Funiture Door Surface Covering Vacuum Press Machine

Funiture Door Surface Covering Vacuum Press Machine

Funiture Door Surface Covering Vacuum Press Machine



7.FAQ

Q1.Warranty

12 months warranty is effective from the date of acceptance of the machine.

Q2. Payment Terms

TT 30% down payment, 70% before shipment.

Q3. Delivery Time

15-30 working days from the receipt of the down payment.

Q4. Technical Support

Every machine is assigned by a specialist. The response is available within troubleshoot and solve problems on line.

Q5.Demo and Testing

In order to built a training center for the clients and employees to study the machines operation. You are welcome to visit our factory anytime for the machines’demo. Furthermore, we could run the machine with the materials provided by you and help you achieve your business efficiently.

Q6.Door-to-door service

We can offer door-to-door service if you need for payment.
