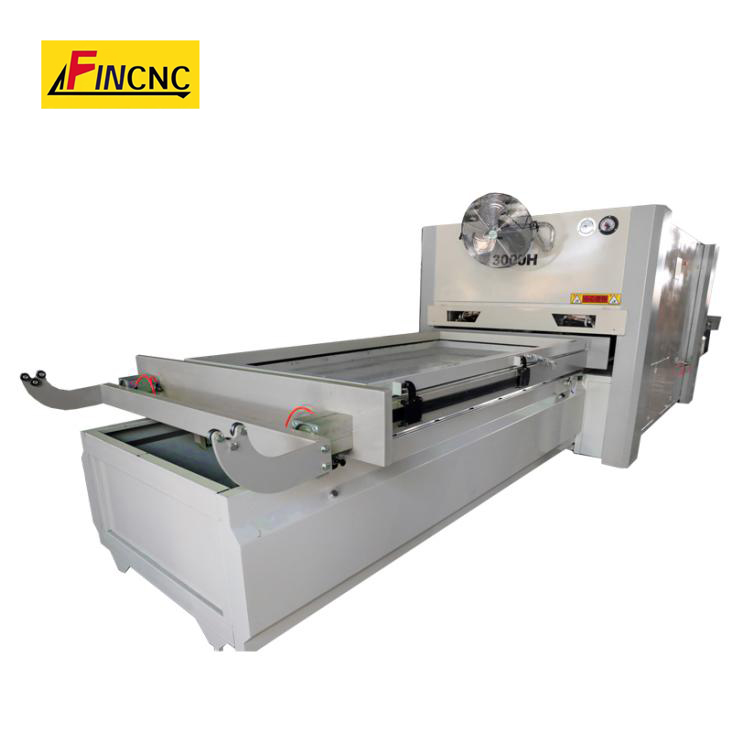

Double Station Melamine Membrane Vacuum Press Machine
  • Double Station Melamine Membrane Vacuum Press MachineDouble Station Melamine Membrane Vacuum Press Machine

Double Station Melamine Membrane Vacuum Press Machine

Double Station melamine membrane vacuum press machine with multifunction,can be used to paste PVC on furniture, cabinets, speakers, relief doors, decoration panels for walls and other abnormal decoration shapes. With a special silicon sheet, it can also work with hot transfer and veneer (real wood).

Send Inquiry

Product Description

1.Product Introduction of the Double Station melamine membrane vacuum press machine

This Double Station melamine membrane vacuum press machine with various imitation high-grade wood, anti-leather PVC mask, surface decoration for all kinds of panel furniture, sound, decorative materials, etc., suitable for surface convex and concave patterns, linear and various edges. .


2.Product Parameter (Specification) of the Double Station melamine membrane vacuum press machine

Working surface

2500/3000×1300/1100×60mm

Pressure

Vacuum≥-0.095Mpa

Dimension

10080×2140×2000mm

Power

25kW

Weight

2T

Voltage

380V 50HZ  (Can order)

Warranty

1 year



3.Product Feature And Application of the Double Station melamine membrane vacuum press machine

1.The Double Station melamine membrane vacuum press machine adopts PLC automatic digital display technology, the machine features highly automatic, easy operation and reliable.
2. Working platform is made of special steel, which is resistant to high temperature and corruption.
3. The Double Station melamine membrane vacuum press machine use aluminium bars infrared heating system and imported thermal insulation material,which can ensure even heating and energy saving.
4. Uses top quality vacuum pump, features reliable performance and prompt pumping.
5.The Auto close cabinet door vacuum membrane press machine adopts auto close system,it working fast and save times.
6.Multi-application, PVC film, Wood veneer and hot transfer is available.
7.Green environmental protection and low power consumption.
8.With advantage of high efficiency, heating quickly and evenly,fast forming, firmly adsorption with smoothly surface.
9.Double layer thermal preservation and full sealing design can save energy.



4.Product Details of the Double Station melamine membrane vacuum press machine

1)Machine structure:The Double Station melamine membrane vacuum press machine adopts two air tanks with big vacuum can do the products perfect 。


2)Heating system:The Double Station melamine membrane vacuum press machine use aluminium bars infrared heating system.

Double Station Melamine Membrane Vacuum Press Machine


3)Vacuum pump:The vacuum pump of the Double Station melamine membrane vacuum press machine is very big pump 140/m3.The speed is so fast.

Double Station Melamine Membrane Vacuum Press Machine


4)Control system:Operation system is PLC, it easy control.


5)PVC support:The Double Station melamine membrane vacuum press machine has two PVC Support can put roll of PVC.

Double Station Melamine Membrane Vacuum Press Machine



5.Product Qualification of the Double Station melamine membrane vacuum press machine

The Double Station melamine membrane vacuum press machine  with CE certificate.



6.Deliver,Shipping And Serving of the Double Station melamine membrane vacuum press machine

The standard packing of the Double Station melamine membrane vacuum press machine  is foam,can order wooden box .



7.FAQ

Q1.Warranty

12 months warranty is effective from the date of acceptance of the machine.

Q2. Payment Terms

TT 30% down payment, 70% before shipment.

Q3. Delivery Time

15-30 working days from the receipt of the down payment.

Q4. Technical Support

Every machine is assigned by a specialist. The response is available within troubleshoot and solve problems on line.

Q5.Demo and Testing

In order to built a training center for the clients and employees to study the machines operation. You are welcome to visit our factory anytime for the machines’demo. Furthermore, we could run the machine with the materials provided by you and help you achieve your business efficiently.

Q6.Door-to-door service

We can offer door-to-door service if you need for payment.
