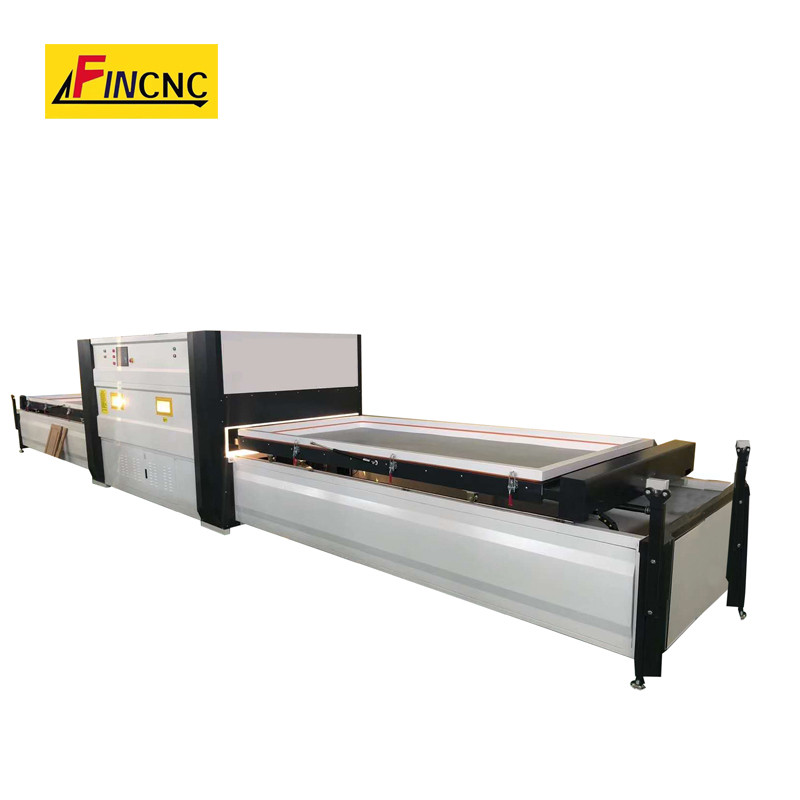

High Gloss Cabinet Door Vacuum Press Machine
  • Air ProHigh Gloss Cabinet Door Vacuum Press Machine

High Gloss Cabinet Door Vacuum Press Machine

High gloss cabinet door vacuum press machine with multifunction,can do cabinet door,room door,WPC door .lower price.Quick delivery

Send Inquiry

Product Description

1.Product Introduction of the High gloss cabinet door vacuum press machine

This High gloss cabinet door vacuum press machine with various imitation high-grade wood, anti-leather PVC mask, surface decoration for all kinds of panel furniture, sound, decorative materials, etc., suitable for surface convex and concave patterns, linear and various edges. .


2.Product Parameter (Specification) of the High gloss cabinet door vacuum press machine

Working surface

2500/3000×1300/1100×60mm

Pressure

Vacuum≥-0.095Mpa

Dimension

10080×2140×2000mm

Power

25kW

Weight

3T

Voltage

380V 50HZ  (Can order)

Warranty

1 year



3.Product Feature And Application of the High gloss cabinet door vacuum press machine

1.The High gloss cabinet door vacuum press machine adopts PLC automatic digital display technology, the machine features highly automatic, easy operation and reliable.
2. Working platform is made of special steel, which is resistant to high temperature and corruption.
3. The High gloss cabinet door vacuum press machineuse aluminium bars infrared heating system and imported thermal insulation material,which can ensure even heating and energy saving.
4. Uses top quality vacuum pump, features reliable performance and prompt pumping.
5.The Auto close cabinet door vacuum membrane press machine adopts auto close system,it working fast and save times.
6.Multi-application, PVC film, Wood veneer and hot transfer is available.
7.Green environmental protection and low power consumption.
8.With advantage of high efficiency, heating quickly and evenly,fast forming, firmly adsorption with smoothly surface.
9.Double layer thermal preservation and full sealing design can save energy.

High Gloss Cabinet Door Vacuum Press Machine



4.Product Details of the High gloss cabinet door vacuum press machine

1)Machine structure:The High gloss cabinet door vacuum press machine adopts two air tanks with big vacuum can do the products perfect 。

High Gloss Cabinet Door Vacuum Press Machine


2)Heating system:The High gloss cabinet door vacuum press machine use aluminium bars infrared heating system.

High Gloss Cabinet Door Vacuum Press Machine


3)Vacuum pump:The vacuum pump of theHigh gloss cabinet door vacuum press machine is very big pump 140/m3.The speed is so fast.

High Gloss Cabinet Door Vacuum Press Machine


4)Control system:Operation system is PLC, it easy control.

High Gloss Cabinet Door Vacuum Press Machine


5)PVC support:The High gloss cabinet door vacuum press machine has two PVC Support can put roll of PVC.

High Gloss Cabinet Door Vacuum Press Machine



5.Product Qualification of the High gloss cabinet door vacuum press machine

The High gloss cabinet door vacuum press machine with CE certificate.

High Gloss Cabinet Door Vacuum Press Machine



6.Deliver,Shipping And Serving of the High gloss cabinet door vacuum press machine

The standard packing of the High gloss cabinet door vacuum press machine is foam,can order wooden box .

High Gloss Cabinet Door Vacuum Press Machine

High Gloss Cabinet Door Vacuum Press Machine

High Gloss Cabinet Door Vacuum Press Machine



7.FAQ

Q1.Warranty

12 months warranty is effective from the date of acceptance of the machine.

Q2. Payment Terms

TT 30% down payment, 70% before shipment.

Q3. Delivery Time

15-30 working days from the receipt of the down payment.

Q4. Technical Support

Every machine is assigned by a specialist. The response is available within troubleshoot and solve problems on line.

Q5.Demo and Testing

In order to built a training center for the clients and employees to study the machines operation. You are welcome to visit our factory anytime for the machines’demo. Furthermore, we could run the machine with the materials provided by you and help you achieve your business efficiently.

Q6.Door-to-door service

We can offer door-to-door service if you need for payment.
