Door Vacuum Press Laminating Machine
  • Air ProDoor Vacuum Press Laminating Machine

Door Vacuum Press Laminating Machine

Door vacuum press laminating machine is special for the door .It is most popular machine in long times.It also can be used to furniture, cabinets, speakers, relief doors, decoration panels for walls and other abnormal decoration shapes.

Send Inquiry

Product Description

1.Product Introduction of the Door vacuum press laminating machine

This Door vacuum press laminating machine can be used to cover PVC on the surface of the craft compound door, furniture, cabinet and sound box and to cover veneer and thermal transfer membrane on single side of the door panel and furniture with the silicon membrane provided by our company.


2.Product Parameter (Specification) of the Door vacuum press laminating machine

Working surface

2500/3000×1300/1100×60mm

Pressure

Vacuum≥-0.095Mpa

Dimension

10080×2140×2000mm

Power

25kW

Weight

2T

Voltage

380V 50HZ  (Can order)

Warranty

1 year



3.Product Feature And Application of the Door vacuum press laminating machine

1.The Door vacuum press laminating machine adopts PLC automatic digital display technology, the machine features highly automatic, easy operation and reliable.
2. Working platform is made of special steel, which is resistant to high temperature and corruption.
3. The Door vacuum press laminating machine use aluminium bars infrared heating system and imported thermal insulation material,which can ensure even heating and energy saving.
4. Uses top quality vacuum pump, features reliable performance and prompt pumping.
5.The Auto close cabinet door vacuum membrane press machine adopts auto close system,it working fast and save times.
6.Multi-application, PVC film, Wood veneer and hot transfer is available.

Door Vacuum Press Laminating Machine


Door Vacuum Press Laminating Machine



4.Product Details of the Door vacuum press laminating machine

1)Heating system:The Door vacuum press laminating machine use aluminium bars infrared heating system.

Door Vacuum Press Laminating Machine


2)Vacuum pump:The vacuum pump of the Door vacuum press laminating machine is very big pump 100/m3.The speed is so fast.

Door Vacuum Press Laminating Machine

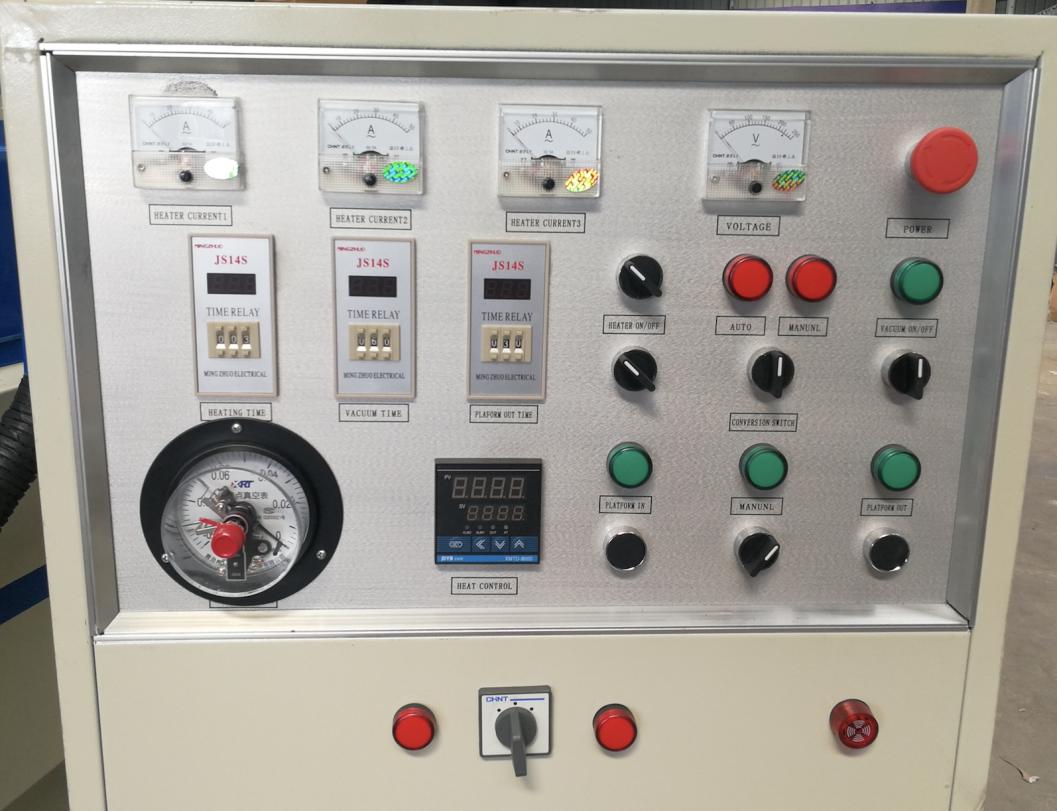

3)Control system:Operation system is PLC, it easy control.

Door Vacuum Press Laminating Machine

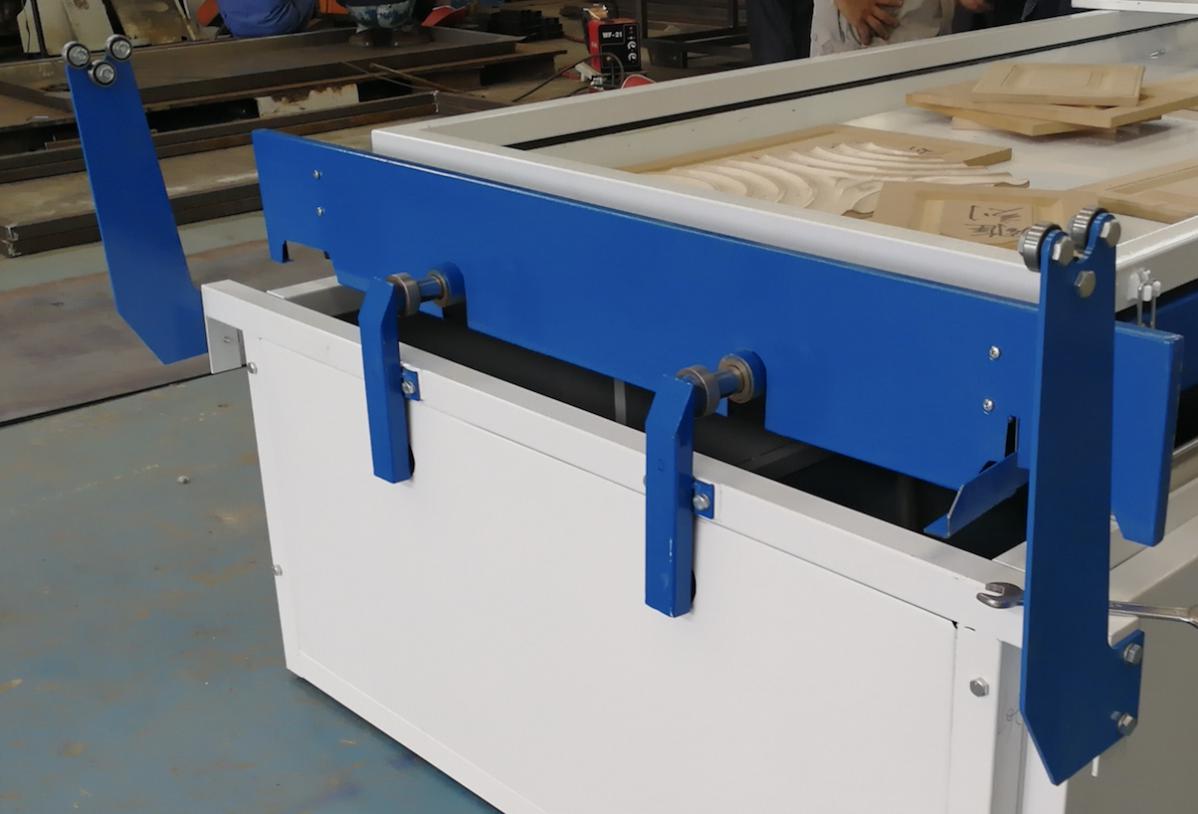

4)PVC support:The Door vacuum press laminating machine has two PVC Support can put roll of PVC.

Door Vacuum Press Laminating Machine



5.Product Qualification of the Door vacuum press laminating machine

The Door vacuum press laminating machine  with CE certificate.

Door Vacuum Press Laminating Machine



6.Deliver,Shipping And Serving of the Door vacuum press laminating machine

The standard packing of the Door vacuum press laminating machine  is foam,can order wooden box .

Door Vacuum Press Laminating Machine

Door Vacuum Press Laminating Machine

Door Vacuum Press Laminating Machine



7.FAQ

Q1.Warranty

12 months warranty is effective from the date of acceptance of the machine.

Q2. Payment Terms

TT 30% down payment, 70% before shipment.

Q3. Delivery Time

15-30 working days from the receipt of the down payment.

Q4. Technical Support

Every machine is assigned by a specialist. The response is available within troubleshoot and solve problems on line.

Q5.Demo and Testing

In order to built a training center for the clients and employees to study the machines operation. You are welcome to visit our factory anytime for the machines’demo. Furthermore, we could run the machine with the materials provided by you and help you achieve your business efficiently.

Q6.Door-to-door service

We can offer door-to-door service if you need for payment.
