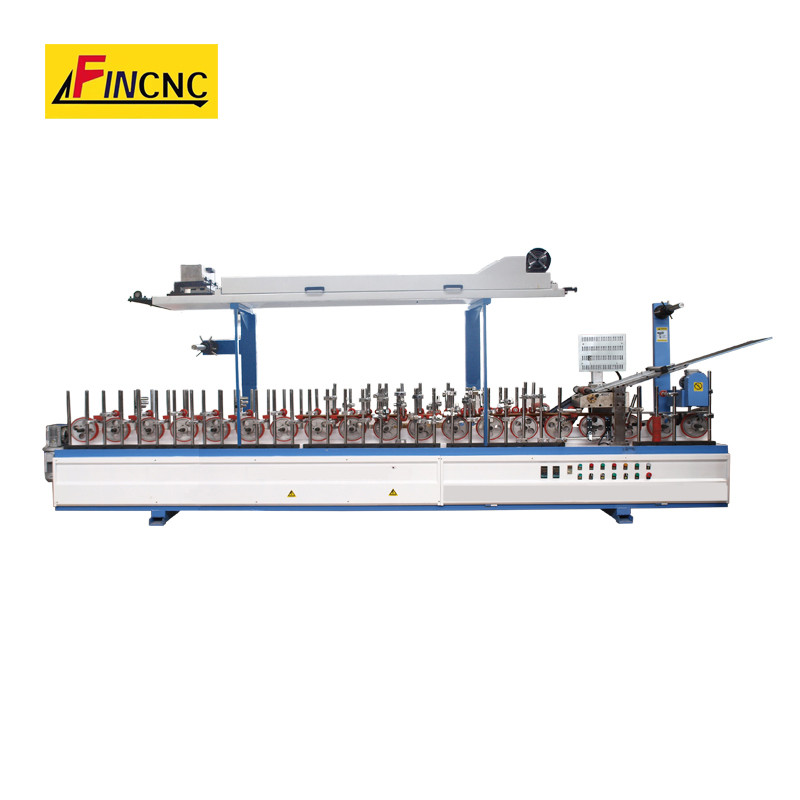

PVC And Veneer Laminating Profile Wrapping Machine
  • Air ProPVC And Veneer Laminating Profile Wrapping Machine

PVC And Veneer Laminating Profile Wrapping Machine

The PVC and Veneer laminating profile wrapping machine for has two glue system on one machine.It can paste many different materials like PVC,paper and wood veneer.Best price,multifunction.

Send Inquiry

Product Description

1.Product Introduction of the PVC and Veneer laminating profile wrapping machine

The PVC and Veneer laminating profile wrapping machine is adopts combines both cold glue and the hot glue system in one machine frame, make full use of the resource, low cost, dual-purpose with one machine, suitable for scale production.It can be used to paste veneer, soaked lacquer paper with hot glue and also PVC and soaked paper with cold glue.


2.Product Parameter (Specification) of the PVC and Veneer laminating profile wrapping machine

Model


LR300A


Max wrapping width

300mm

Max processing thickness

120mm

Wrapping speed

0-20m/min

Total power

10kw

Power of main motor

2.2kw

Way of gluing

roll hot-melt rubber
scale aqueous and unctuous cement

Weight:

2300KG

 Overall dimension of main machine

5500*900*1900mm



3.Product Feature And Application of the PVC and Veneer laminating profile wrapping machine

1.The PVC and Veneer laminating profile wrapping machine for wood veneer paper
has two glue system, the scrape coating system for cold glue to work with PVC and hot melt glue coating for hot melt glue to work with wooden venner.
2.It can finish the surface, the sides and the bottom continuously with accomplished effectively.
3.The PVC and Veneer laminating profile wrapping machine bottom wheel are all made by silicon rubber and aluminum, they are wearable and not sticky to the glue.
4.The heating system includes the main heating part, the profile heating part and the heating fans which make perfect result in cold weather.
5.the conveying system adopts the chain and the speed is adjustable controlled by the imported transducer.
6.The glue box and hot glue plate synchronous heating, can meet mass production requirement without frequently adding glue.

PVC And Veneer Laminating Profile Wrapping Machine



4.Product Details of the PVC and Veneer laminating profile wrapping machine

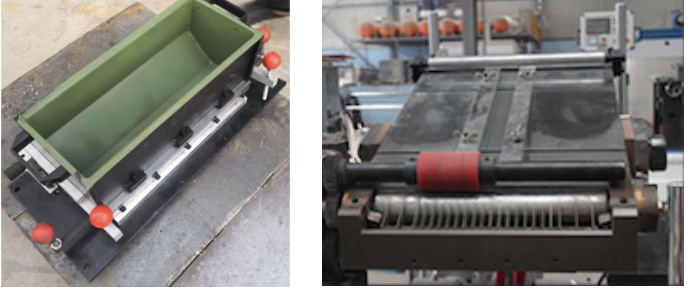

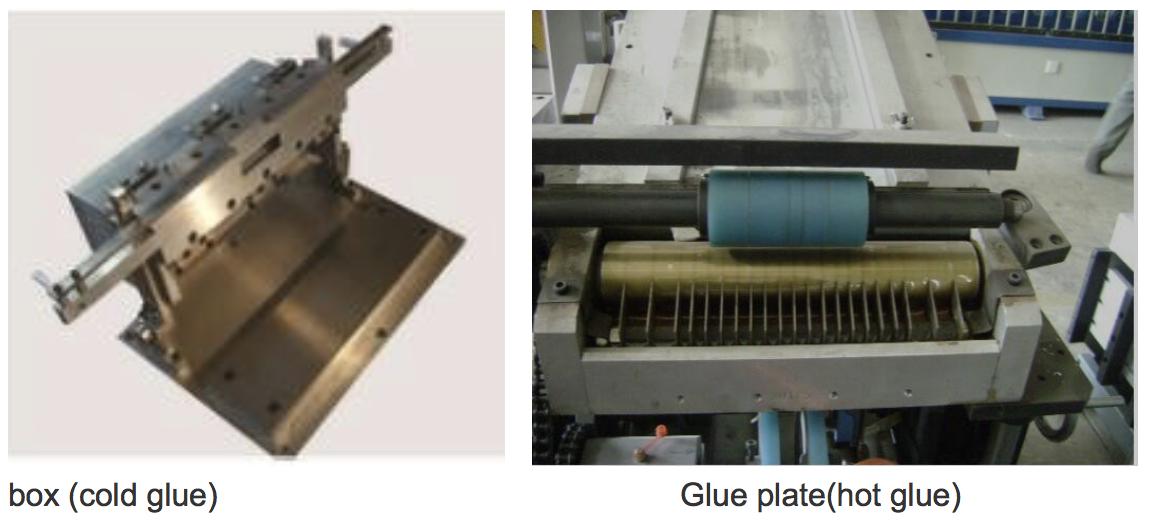

1)Glue system:PVC and Veneer laminating profile wrapping machine Has two glue sytem.One is cold for PVC,other is hot for wood veneer.

PVC And Veneer Laminating Profile Wrapping Machine


2)Teflon glue system:The glue box not viscose, Easy to operate, Easy to clean because it is after teflon processed.

PVC And Veneer Laminating Profile Wrapping Machine

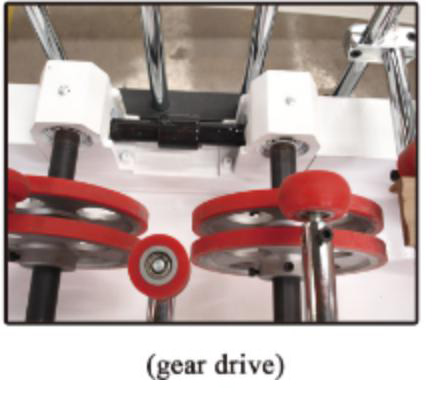

3)Drive:The rubber roller adopts a silicone rubber wheel, which has the characteristics of high strength, good elasticity, and difficulty in separating the metal surface.

PVC And Veneer Laminating Profile Wrapping Machine


4)Width can adjust:The PVC and Veneer laminating profile wrapping machine can adjust widtht according to your products.

PVC And Veneer Laminating Profile Wrapping Machine



5) Fast change system:If there are many model you can choose fast change it can save adjust times .

PVC And Veneer Laminating Profile Wrapping Machine





5.Product Qualification of the PVC and Veneer laminating profile wrapping machine

PVC and Veneer laminating profile wrapping machine  with CE certificate.

PVC And Veneer Laminating Profile Wrapping Machine



6.Deliver,Shipping And Serving of the PVC and Veneer laminating profile wrapping machine

The standard packing of the PVC and Veneer laminating profile wrapping machine  is foam,can order wooden box .

PVC And Veneer Laminating Profile Wrapping Machine



PVC And Veneer Laminating Profile Wrapping Machine



7.FAQ

Q1.Warranty

12 months warranty is effective from the date of acceptance of the machine.

Q2. Payment Terms

TT 30% down payment, 70% before shipment.

Q3. Delivery Time

15-30 working days from the receipt of the down payment.

Q4. Technical Support

Every machine is assigned by a specialist. The response is available within troubleshoot and solve problems on line.

Q5.Demo and Testing

In order to built a training center for the clients and employees to study the machines operation. You are welcome to visit our factory anytime for the machines’demo. Furthermore, we could run the machine with the materials provided by you and help you achieve your business efficiently.

Q6.Door-to-door service

We can offer door-to-door service if you need for payment.
