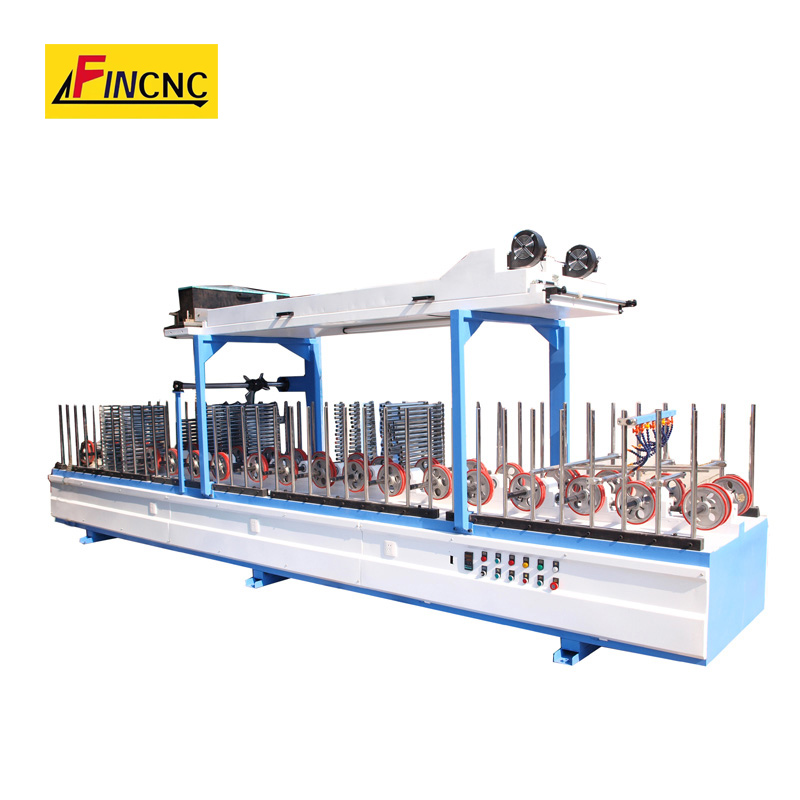

Aluminum Frame Profile Wrapping Machine
  • Air ProAluminum Frame Profile Wrapping Machine

Aluminum Frame Profile Wrapping Machine

Aluminum frame profile wrapping machine cold glue system for PVC,low price, fast speed.scraper knife glue balance.

Send Inquiry

Product Description

1.Product Introduction of the Aluminum frame profile wrapping machine

Aluminum frame profile wrapping machine is cold glue lamination machine is designed to laminate PVC film, decorative paper on the surface of PVC board, medium density fiber boards (MDF), WPC boards, PVC profiles, windowsills, PVC wall panel,WPC wall panel and so on. It's equipped with double film unwinding systems, film photoelectric tracer, film extension automatic controller, dust cleaner, glue coating device and laminating system and so on. Glue rolling coating and glue scraping coating devices are as optional.


2.Product Parameter (Specification) of the Aluminum frame profile wrapping machine

Model

L650SD

Max wrapping width

650mm

Max processing thickness

80mm

Wrapping speed

0-20m/min

Total power

10kw

Power of main motor

4.5kw

Way of gluing

scale aqueous and unctuous cement

Weight:

3500KG

Overall dimension of main machine

5300*1000*1900mm



3.Product Feature And Application of the Aluminum frame profile wrapping machine

1. Aluminum frame profile wrapping machine is long compounding part, offer best lamination effect and higher efficiency;
2.  It with 120 sets various holding rollers for various UPVC profiles;
3.  The aluminum frame profile wrapping machineglue system is curtain coating with uniform coating effect, suitable for Germany bi-component glue; Roller coating also available for economical lamination.
4.  with device for coating affinity binding agent for easy adhesive, special good for UPVC window and door profiles.
5.  film releasing shaft is pneumatic expansion shaft with more tension to films.

Aluminum Frame Profile Wrapping Machine

Aluminum Frame Profile Wrapping Machine



4.Product Details of the Aluminum frame profile wrapping machine

1)Teflon glue system:The Aluminum frame profile wrapping machine glue box not viscose, Easy to operate, Easy to clean because it is after teflon processed.

Aluminum Frame Profile Wrapping Machine


2)Teflon glue system:The glue box not viscose, Easy to operate, Easy to clean because it is after teflon processed.

Aluminum Frame Profile Wrapping Machine


2)Drive:The rubber roller adopts a silicone rubber wheel, which has the characteristics of high strength, good elasticity, and difficulty in separating the metal surface.

Aluminum Frame Profile Wrapping Machine


4)Width can adjust:The Aluminum frame profile wrapping machine can adjust widtht according to your products.

Aluminum Frame Profile Wrapping Machine





5.Product Qualification of the Aluminum frame profile wrapping machine

Aluminum frame profile wrapping machine  with CE certificate.

Aluminum Frame Profile Wrapping Machine



6.Deliver,Shipping And Serving of the Aluminum frame profile wrapping machine

The standard packing of the Aluminum frame profile wrapping machine  is foam,can order wooden box .

Aluminum Frame Profile Wrapping Machine



Aluminum Frame Profile Wrapping Machine



7.FAQ

Q1.Warranty

12 months warranty is effective from the date of acceptance of the machine.

Q2. Payment Terms

TT 30% down payment, 70% before shipment.

Q3. Delivery Time

15-30 working days from the receipt of the down payment.

Q4. Technical Support

Every machine is assigned by a specialist. The response is available within troubleshoot and solve problems on line.

Q5.Demo and Testing

In order to built a training center for the clients and employees to study the machines operation. You are welcome to visit our factory anytime for the machines’demo. Furthermore, we could run the machine with the materials provided by you and help you achieve your business efficiently.

Q6.Door-to-door service

We can offer door-to-door service if you need for payment.
