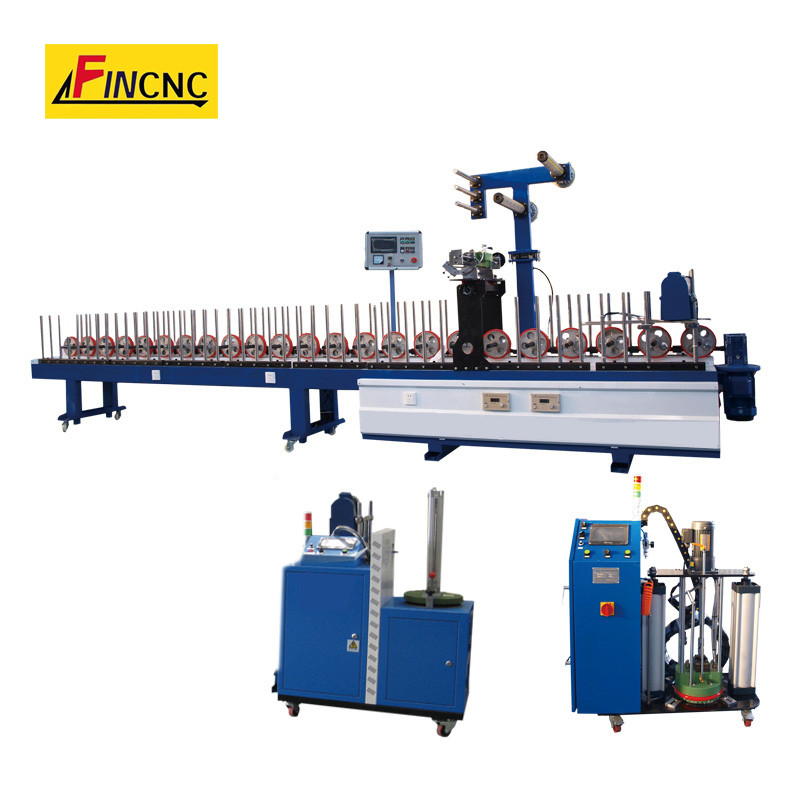

PUR Multifunction Profile Wrapping Laminate Machine
  • Air ProPUR Multifunction Profile Wrapping Laminate Machine

PUR Multifunction Profile Wrapping Laminate Machine

PUR Multifunction Profile Wrapping Laminate Machine has automatic dust removal, adhesive application, profile heating, automatic scraping, and protective film.

Send Inquiry

Product Description

1.Product Introduction of the PUR multifunction profile wrapping laminate machine

This PUR multifunction profile wrapping laminate machine is useda PUR hot-melt polyurethane reactive glue and an automatic squeegee system. It can laminated foil on the profile surface like: MDF, plastic panel, aluminum and other material.The foil includes PVC, veneer, decrotive paper, PP, PET, PU and other decrotive materials.


2.Product Parameter (Specification) of the PUR multifunction profile wrapping laminate machine

Model

PUR-300

Max wrapping width

350mm

Max processing thickness

120mm

Wrapping speed

0-50m/min

Total power

13kw

Power of main motor

2.2kw

Width adjustment

Hand cranking

Electrical control manner

PLC control,Touching screen

 Overall dimension of main machine

5780*900*1900mm



3.Product Feature And Application of the PUR multifunction profile wrapping laminate machine

1. Production efficiency up to 50m/min, much high than the traditional cold glue or hot glue wrapping machine.
2. Gluing part and processing part the split type design, each profile line can be quickly replaced without frequently disassembly pressure rollers, which great improves the production efficiency stability.
3. Gluing part and processing part the split type design, one gluing part can be equipped with multiple processing part, greatly reducing the purchasing cost.
4. The PUR multifunction profile wrapping laminate machine suitable for more materials, surface materials including PVC film, high glossy, veneer, aluminum foil, paper, leather, wallpaper, cloth, fleece, kraft paper, melamine paper. Profile line includes MDF, solid wood, PVC, bamboo fiber board, stones plastic panels, aluminum and other metals.
5. PUR glue meet the standarda of enviroment protection, non-irritating odor, do not pollue the enviroment.
6. PUR glue is reaction glue, strong adhesion, non-bugling, irreversible.

PUR Multifunction Profile Wrapping Laminate Machine



4.Product Details of the PUR multifunction profile wrapping laminate machine

1)Glue machine:The PUR multifunction profile wrapping laminate machinecan choose two model glue machine。One is platen model,other is continuous gluing.

PUR Multifunction Profile Wrapping Laminate Machine


2)Control system:Using touch screen, programmable controller PLC and inverter control, with convenient operation and high precision.

PUR Multifunction Profile Wrapping Laminate Machine


3)Scraping knife:The PUR multifunction profile wrapping laminate machine usescraping knife to gluing,it made glue balance and save glue.

PUR Multifunction Profile Wrapping Laminate Machine


4)Waterproof:PUR glue meet the standarda of enviroment protection, non-irritating odor, do not pollue the enviroment.

PUR Multifunction Profile Wrapping Laminate Machine



5)Drive:The rubber roller adopts a silicone rubber wheel, which has the characteristics of high strength, good elasticity, and difficulty in separating the metal surface.

PUR Multifunction Profile Wrapping Laminate Machine



6)Film roll system:Distensible with air-operated can put film easy.

PUR Multifunction Profile Wrapping Laminate Machine



5.Product Qualification of the PUR multifunction profile wrapping laminate machine

PUR multifunction profile wrapping laminate machine  with CE certificate.

PUR Multifunction Profile Wrapping Laminate Machine



6.Deliver,Shipping And Serving of the PUR multifunction profile wrapping laminate machine

The standard packing of the PUR multifunction profile wrapping laminate machine  is foam,can order wooden box .

PUR Multifunction Profile Wrapping Laminate Machine



PUR Multifunction Profile Wrapping Laminate Machine



7.FAQ

Q1.Warranty

12 months warranty is effective from the date of acceptance of the machine.

Q2. Payment Terms

TT 30% down payment, 70% before shipment.

Q3. Delivery Time

15-30 working days from the receipt of the down payment.

Q4. Technical Support

Every machine is assigned by a specialist. The response is available within troubleshoot and solve problems on line.

Q5.Demo and Testing

In order to built a training center for the clients and employees to study the machines operation. You are welcome to visit our factory anytime for the machines’demo. Furthermore, we could run the machine with the materials provided by you and help you achieve your business efficiently.

Q6.Door-to-door service

We can offer door-to-door service if you need for payment.
