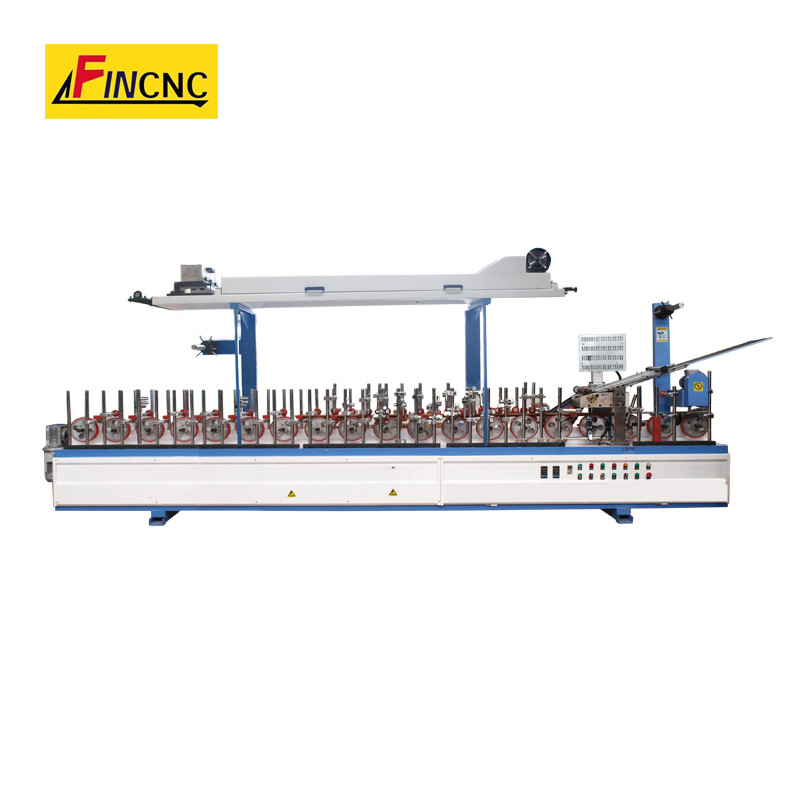

EVA Profile Wrapping Laminate Machine For Wood Veneer Paper
  • Air ProEVA Profile Wrapping Laminate Machine For Wood Veneer Paper

EVA Profile Wrapping Laminate Machine For Wood Veneer Paper

The EVA profile wrapping laminate machine for wood veneer paper has two glue system.Cold and hot glue system can paste many different materials.Best price,multifunction.

Send Inquiry

Product Description

1.Product Introduction of the EVA profile wrapping laminate machine for wood veneer paper

The EVA profile wrapping laminate machine is a multifunction machine because it has two glue system.So it can be used to paste veneer, soaked lacquer paper with hot glue and also PVC and soaked paper with cold glue.
Product Parameter (Specification) of the EVA profile wrapping laminate machine for wood veneer paper


2.Product Parameter (Specification) of the EVA profile wrapping laminate machine for wood veneer paper

Model


LR300A


Max wrapping width

300mm

Max processing thickness

120mm

Wrapping speed

0-20m/min

Total power

10kw

Power of main motor

2.2kw

Way of gluing

roll hot-melt rubber
scale aqueous and unctuous cement

Weight:

2300KG

 Overall dimension of main machine

5500*900*1900mm



3.Product Feature And Application of the EVA profile wrapping laminate machine for wood veneer paper

1.The EVA profile wrapping laminate machine for wood veneer paper
has two glue system, the scrape coating system for cold glue to work with PVC and hot melt glue coating for hot melt glue to work with wooden venner.
2.It can finish the surface, the sides and the bottom continuously with accomplished effectively.
3.The bottom wheel are all made by silicon rubber and aluminum, they are wearable and not sticky to the glue.
4.The heating system includes the main heating part, the profile heating part and the heating fans which make perfect result in cold weather.
5, the conveying system adopts the chain and the speed is adjustable controlled by the imported transducer.

EVA Profile Wrapping Laminate Machine For Wood Veneer Paper



4.Product Details of the EVA profile wrapping laminate machine for wood veneer paper

1)Glue system:EVA profile wrapping laminate machine for wood veneer paper Has two glue sytem.One is cold for PVC,other is hot for wood veneer.

EVA Profile Wrapping Laminate Machine For Wood Veneer Paper


2)Teflon glue system:The glue box not viscose, Easy to operate, Easy to clean because it is after teflon processed.

EVA Profile Wrapping Laminate Machine For Wood Veneer Paper


3)Drive:The rubber roller adopts a silicone rubber wheel, which has the characteristics of high strength, good elasticity, and difficulty in separating the metal surface.

EVA Profile Wrapping Laminate Machine For Wood Veneer Paper


4)Width can adjust:The EVA profile wrapping laminate machine for wood veneer paper can adjust widtht according to your products.

EVA Profile Wrapping Laminate Machine For Wood Veneer Paper



5) Fast change system:If there are many model you can choose fast change it can save adjust times .

EVA Profile Wrapping Laminate Machine For Wood Veneer Paper





5.Product Qualification of the EVA profile wrapping laminate machine for wood veneer paper

EVA profile wrapping laminate machine for wood veneer paper  with CE certificate.

EVA Profile Wrapping Laminate Machine For Wood Veneer Paper



6.Deliver,Shipping And Serving of the EVA profile wrapping laminate machine for wood veneer paper

The standard packing of the EVA profile wrapping laminate machine for wood veneer paper  is foam,can order wooden box .

EVA Profile Wrapping Laminate Machine For Wood Veneer Paper



EVA Profile Wrapping Laminate Machine For Wood Veneer Paper



7.FAQ

Q1.Warranty

12 months warranty is effective from the date of acceptance of the machine.

Q2. Payment Terms

TT 30% down payment, 70% before shipment.

Q3. Delivery Time

15-30 working days from the receipt of the down payment.

Q4. Technical Support

Every machine is assigned by a specialist. The response is available within troubleshoot and solve problems on line.

Q5.Demo and Testing

In order to built a training center for the clients and employees to study the machines operation. You are welcome to visit our factory anytime for the machines’demo. Furthermore, we could run the machine with the materials provided by you and help you achieve your business efficiently.

Q6.Door-to-door service

We can offer door-to-door service if you need for payment.
