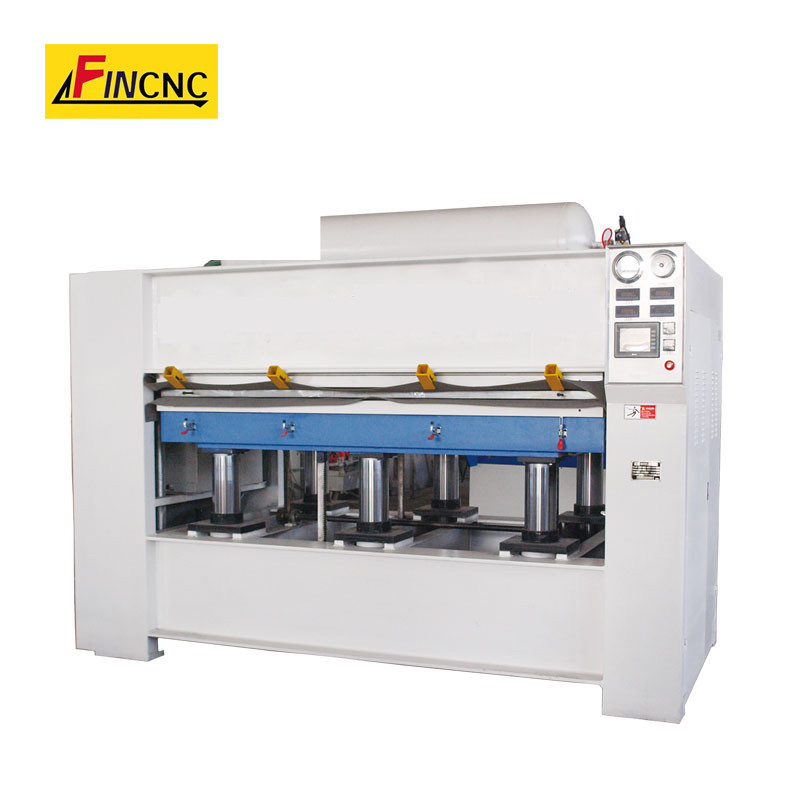

Wood Door Membrane Forming Press Machine
  • Air ProWood Door Membrane Forming Press Machine

Wood Door Membrane Forming Press Machine

Excellent adhesive strength,clear surface for Wood door membrane forming press machine .special for wood veneer ,wood door.Ten years factory,Customized Product. Shaped surfaces covering,Quick delivery.

Send Inquiry

Product Description

1.Product Introduction of the Wood door membrane forming press machine

This Wood door membrane forming press machine of equipment is designed for manufacturing room doors and cupboard plates, which can be used for film the veneer of door core-boards. This can realize many functions( cold and hot pressing machine, filming single side or double sides of solid wood door plates).


2.Product Parameter (Specification) of the Wood door membrane forming press machine

Working surface

2340×1140×40mm

Pressure

Positive Pressure≤0.5Mpa Vacuum≥-0.095Mpa

Dimension

3750×1500×2250mm

Power

35kW

Weight

8T

Voltage

380V 50HZ  (Can order)

Warranty

1 year



3.Product Feature And Application of the Wood door membrane forming press machine

1) The Wood door membrane forming press machine is PLC touch screen,operationis optional simple and precise .
2) Double working tables,save time and efficient.
3) The Wood door membrane forming press machine have positive and negative.
4) This machine is suitable for covering wood film on the surfaces of all kinds of plate type furniture, door and cabinet door etc.
5)Particularly it is used to covering on concave and convex line and various shape edge surface.
6)It is the ideal equipment in interior design.

Wood Door Membrane Forming Press Machine

Wood Door Membrane Forming Press Machine



4.Product Details of the Wood door membrane forming press machine

1)Machine structure:The Wood door membrane forming press machine frame board all choose whole steel plate,stable and durable。

Wood Door Membrane Forming Press Machine


2)Electric partsAll the key components of electrical system adopts Schneider and Omron brandlong service time.

Wood Door Membrane Forming Press Machine


3)Slicon sheet:when the Wood door membrane forming press machine make complete membrane,silicone board only play the role of warm.positive pressure working without silicone board but small piece membrane.

Wood Door Membrane Forming Press Machine


4)Vacuum pump:The vacuum pump performance could match the Europe brand,and its main parameter have over the Germany products .the pump head adopts low alloy cast iron ,higher abrasion resistance and corrosion resistance.

Wood Door Membrane Forming Press Machine


5)Control system:Operation system PLC, control interface originally from Japan with advanced technology and highly automatic.

Wood Door Membrane Forming Press Machine



5.Product Qualification of the Wood door membrane forming press machine

The Wood door membrane forming press machine with CE certificate.

Wood Door Membrane Forming Press Machine



6.Deliver,Shipping And Serving of the Wood door membrane forming press machine

The standard packing of the Wood door membrane forming press machine is foam,can order wooden box .

Wood Door Membrane Forming Press Machine

Wood Door Membrane Forming Press Machine

Wood Door Membrane Forming Press Machine



7.FAQ

Q1.Warranty

12 months warranty is effective from the date of acceptance of the machine.

Q2. Payment Terms

TT 30% down payment, 70% before shipment.

Q3. Delivery Time

15-30 working days from the receipt of the down payment.

Q4. Technical Support

Every machine is assigned by a specialist. The response is available within troubleshoot and solve problems on line.

Q5.Demo and Testing

In order to built a training center for the clients and employees to study the machines operation. You are welcome to visit our factory anytime for the machines’demo. Furthermore, we could run the machine with the materials provided by you and help you achieve your business efficiently.

Q6.Door-to-door service

We can offer door-to-door service if you need for payment.
