Three Point Type Angle Straightening Machine

Three Point Type Angle Straightening Machine

Three Point Type Angle Straightening Machine Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
Delivery Time: 15 Days

Send Inquiry

Product Description

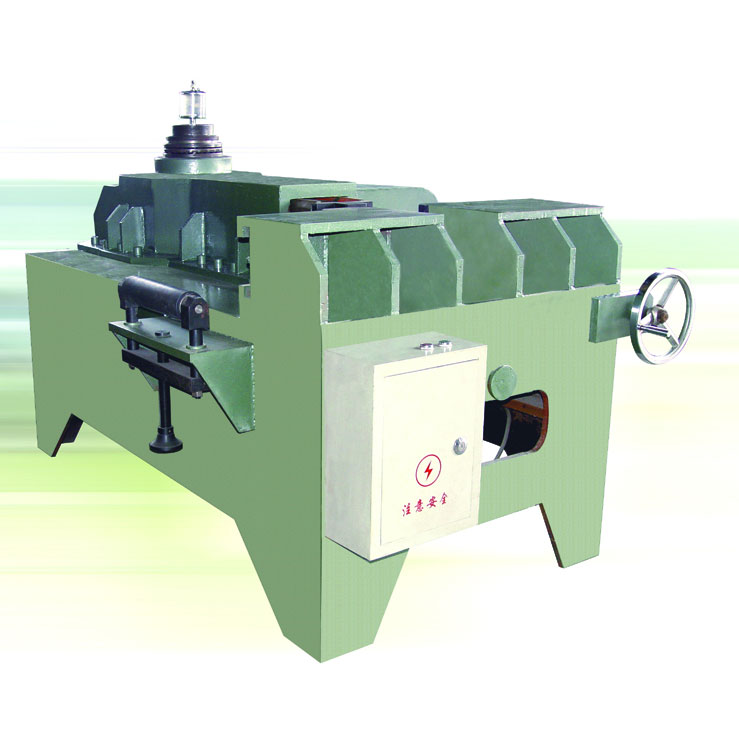

Three Point Type Angle Straightening Machine

Basic Info

Model No.: XJ

Certification: GS, SGS, CE, RoHS, ISO 9001

Condition: New

Founction: Straightening Of Angles, Channels, Squares, Etc.

Max. Size Of Straightening(Min): L250×250×32

Times Of Straightening (min-1): 25

Working Stroke(mm): 30

Power Of Motor(Kw): 15

Way Of Driving: Mechanical& Hydraulic Way

Additional Info

Packaging: Wooden Pallet

Productivity: 80set

Brand: SF

Transportation: Ocean

Place of Origin: China

Certificate: ISO9001

Port: Qingdao Port

Product Description

Angle straightening machine  is three-point straightening machine, used in straightening angles of L200х200х200 and smaller ones (especially zinc coated angles), round steel below Φ150, channel steel and band steel below 260 and square steel below 150.

XJ section straightening machine has a for the mechanical crank rod structure, the max thrust power of the pressure head horizontally laying is 1000KN, the max eccentric measurement of the crank is10mm, namely each Expansion measurement is20mm, its discharge head position (in sample picture) the handwheel carries on the adjustment by the graphical representation, i.e. in carries on the different thickness section and in the different correction quantity situation, so long as then causes the discharge head according to the demand adjusting handle to be in the ideal position: In short, after namely the starting, discharge head forever makes20mmthe concertina movement, while makes concertina movement to be possible to adjust the discharge head position through the handwheel any position. Is suitable specially after the galvanization the angle steel, and has not harmed to the galvanization.

Main technical parameter:

Model XZ20 XZ250
Functions Straightening of angles, channels, squares, etc.
Max. size of straightening(Min) L200×200×20 L250×250×32
Times of straightening (min-1) 25
Working stroke(mm) 20 30
Adjustable stroke(mm) 100
Power of Motor(Kw) 7.5 15
Way of Driving Machanical way Mechanical& hydraulic way
