Stainless Steel Drilling Machine
  • Stainless Steel Drilling MachineStainless Steel Drilling Machine
  • Stainless Steel Drilling MachineStainless Steel Drilling Machine
  • Stainless Steel Drilling MachineStainless Steel Drilling Machine
  • Stainless Steel Drilling MachineStainless Steel Drilling Machine

Stainless Steel Drilling Machine

Stainless Steel Drilling Machine Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
Delivery Time: 35 Days

Send Inquiry

Product Description

Stainless Steel Drilling Machine

Basic Info

Model No.: PLD

Application: Metal

Numerical Control: CNC/MNC

Processing Precision: ±0.05mm

Certification: CE, ISO 9001

Condition: New

Processing Thickness: Max. 100mm

Drilling Dia.: Max. Φ50mm

Rotation Speed: 130-560r/min

Processing Stroke: 180mm

Qty. Of Hydraulic Tank: 12pcs


Additional Info

Packaging: Wooden Pallet

Productivity: 30set

Brand: SF

Transportation: Ocean

Place of Origin: China

Certificate: ISO9001

Port: Qingdao Port


Product Description

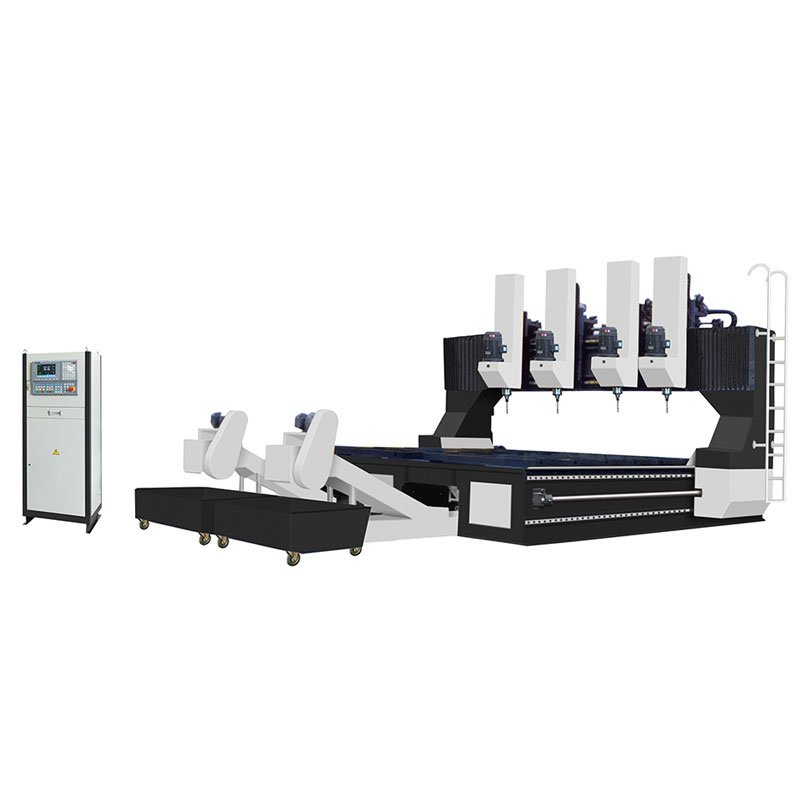

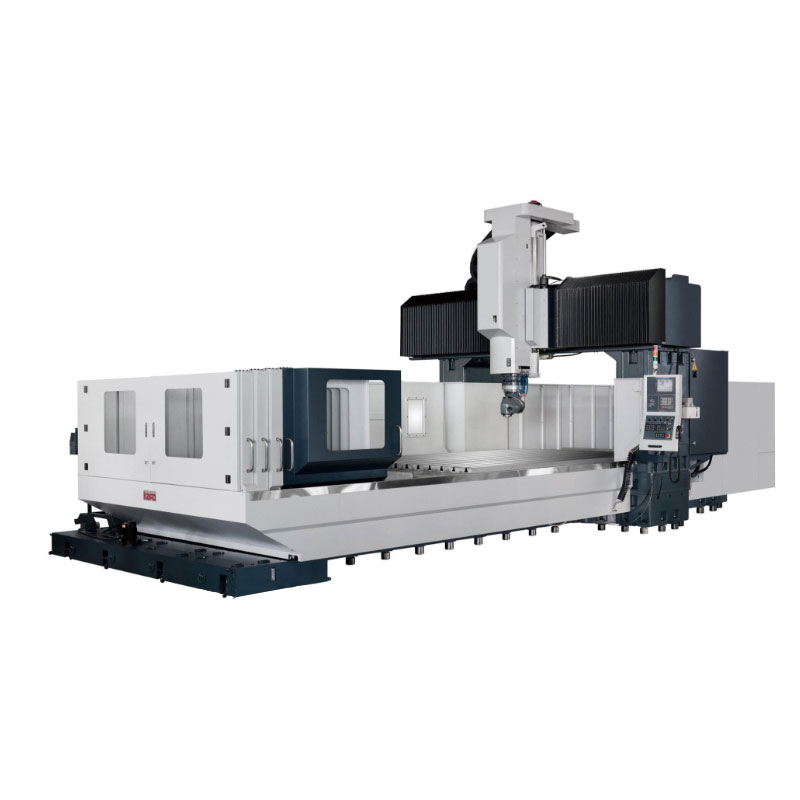

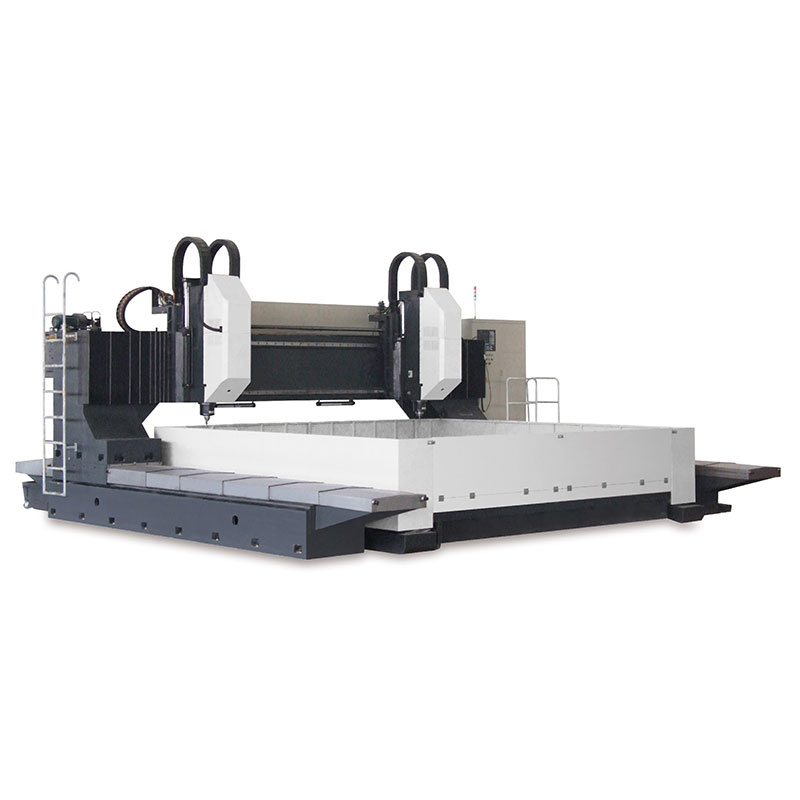

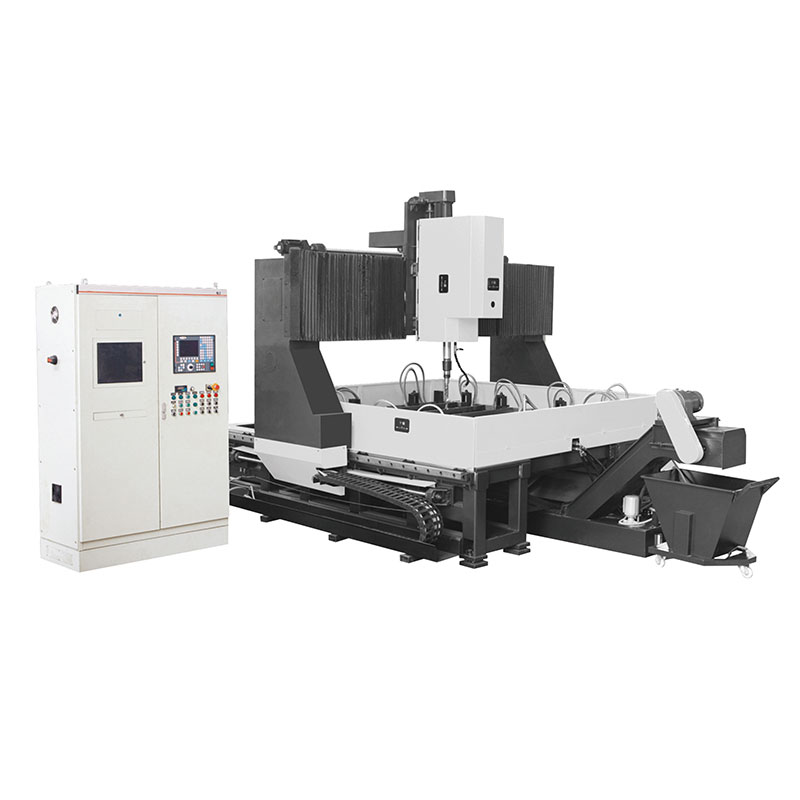

CNC Gantry plate drilling machine


Apply scope:

For steel structure, tower, bridge, mechanical processing and other industries of the connecting plate, baseboard drilling processing.


Product structure:

Casting bed, spindle hydraulic feed, SEW deceleration motor, workpiece automatic clamping.

This machine is mainly composed of bed, gantry structure, drilling power head, hydraulic system, control system, centralized

lubrication system, cooling system chip removal system and quick change chuck.


The characteristics:

1.The bed is made of high quality gray cast iron with stable performance and no deformation.

2.Spindle hydraulic feed, motor adopts German SEW deceleration motor, high efficiency and very durable.

3.Adopt hydraulic clamping system, small workpiece can be clamped at four corners of worktable, shortening production preparation period and improving production efficiency.

4. CNC system: In the Windows interface or in the AUTOCAD environment, the steel plate is programmed directly, the programming is convenient. It can be finished to make program outside the computer, then directly copy or transmit by internet into computer to save as the program.


Technical parameters

Processing size Processing thickness Max. 100mm
W×L 1200mm×2000mm 1pcs
1200mm×1000mm 2pcs
600mm×1000mm 4pcs
