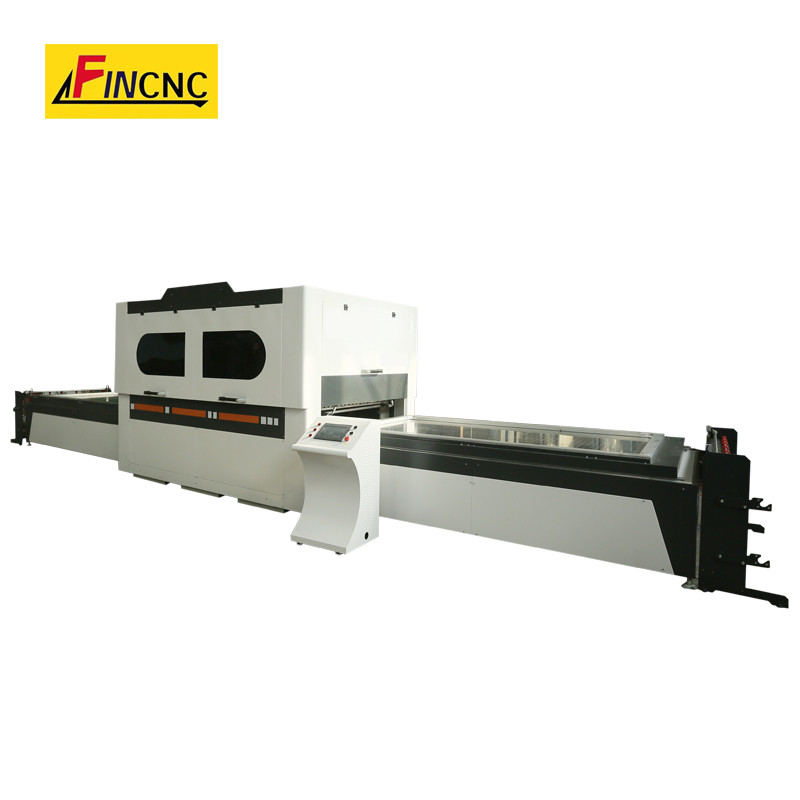

MDF Cabinet Door Vacuum Membrane Press Machine
  • Air ProMDF Cabinet Door Vacuum Membrane Press Machine

MDF Cabinet Door Vacuum Membrane Press Machine

Excellent adhesive strength,clear surface for MDF cabinet door vacuum membrane press machine . Ten years factory,Customized Product. Shaped surfaces covering,Quick delivery.

Send Inquiry

Product Description

1.Product Introduction of the MDF cabinet door vacuum membrane press machinee

This MDF cabinet door vacuum membrane press machine is fully automatic vacuum coating equipment, can be a variety of high-grade PVC , transfer film, leather furniture surface coating of paste.The high degree of automation and simple operation, processing time, working temperature, vacuum value , all automatic control, to ensure product quality, improve production efficiency.


2.Product Parameter (Specification) of the MDF cabinet door vacuum membrane press machinee

Working surface

2580×1270×50mm

Pressure

Positive Pressure≤0.5Mpa Vacuum≥-0.095Mpa

Dimension

10080×2140×2150mm

Power

45kW

Weight

13T

Voltage

380V 50HZ  (Can order)

Warranty

1 year



3.Product Feature And Application of the MDF cabinet door vacuum membrane press machinee

1) The MDF cabinet door vacuum membrane press machinee is PLC touch screen,operationis optional simple and precise .
2) Double working tables,save time and efficient.
3) The machine have positive and negative.
4) This machine is suitable for covering PVC film on the surfaces of all kinds of plate type furniture, sound boxes and ornamental materials etc.
5)Particularly it is used to covering on concave and convex line and various shape edge surface.
6)It is the ideal equipment in interior design.
7)This machine can be used to paste high gloss PVC,paper and heating transfer printing on furniture, cabinets, speakers, relief doors, decoration panels for walls and other abnormal decoration shapes.

MDF Cabinet Door Vacuum Membrane Press Machine

MDF Cabinet Door Vacuum Membrane Press Machine



4.Product Details of the MDF cabinet door vacuum membrane press machinee

1Machine structureThe MDF cabinet door vacuum membrane press machinee frame board all choose whole steel plate,stable and durable。

MDF Cabinet Door Vacuum Membrane Press Machine

2)Electric partsAll the key components of electrical system adopts Schneider and Omron brandlong service time.

MDF Cabinet Door Vacuum Membrane Press Machine

3)Slicon sheet:when the MDF cabinet door vacuum membrane press machinee make complete membrane,silicone board only play the role of warm.positive pressure working without silicone board but small piece membrane.

MDF Cabinet Door Vacuum Membrane Press Machine


4)Vacuum pump:The vacuum pump performance could match the Europe brand,and its main parameter have over the Germany products .the pump head adopts low alloy cast iron ,higher abrasion resistance and corrosion resistance.

MDF Cabinet Door Vacuum Membrane Press Machine

5)Control system:Operation system PLC, control interface originally from Japan with advanced technology and highly automatic.

MDF Cabinet Door Vacuum Membrane Press Machine

6)Automatic cutting The MDF cabinet door vacuum membrane press machine with automatic cutting can cut PVC easy.

MDF Cabinet Door Vacuum Membrane Press Machine



5.Product Qualification of the MDF cabinet door vacuum membrane press machinee

The MDF cabinet door vacuum membrane press machinee with CE certificate.

MDF Cabinet Door Vacuum Membrane Press Machine



6.Deliver,Shipping And Serving of the MDF cabinet door vacuum membrane press machinee

The standard packing of the MDF cabinet door vacuum membrane press machinee is foam,can order wooden box .

MDF Cabinet Door Vacuum Membrane Press Machine

MDF Cabinet Door Vacuum Membrane Press Machine

MDF Cabinet Door Vacuum Membrane Press Machine



7.FAQ

Q1.Warranty

12 months warranty is effective from the date of acceptance of the machine.

Q2. Payment Terms

TT 30% down payment, 70% before shipment.

Q3. Delivery Time

15-30 working days from the receipt of the down payment.

Q4. Technical Support

Every machine is assigned by a specialist. The response is available within troubleshoot and solve problems on line.

Q5.Demo and Testing

In order to built a training center for the clients and employees to study the machines operation. You are welcome to visit our factory anytime for the machines’demo. Furthermore, we could run the machine with the materials provided by you and help you achieve your business efficiently.

Q6.Door-to-door service

We can offer door-to-door service if you need for payment.
