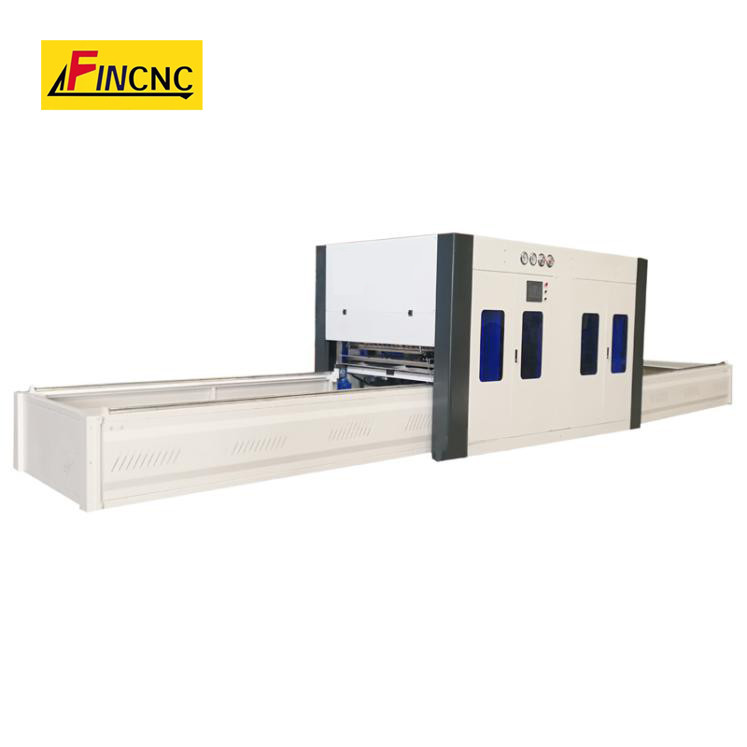

Positive And Negative Membrane Press Machine
  • Positive And Negative Membrane Press MachinePositive And Negative Membrane Press Machine

Positive And Negative Membrane Press Machine

Save film ,high levels of output and excellent adhesive strength,clear surface for Positive and negative membrane press machine.Ten years factory,Customized Product. Shaped surfaces covering,Quick delivery.Shandong EN FIN CNC Machinery Co., Ltd.

Send Inquiry

Product Description

1.Product Introduction of the Positive and negative membrane press machine

This Positive and negative membrane press machine can do the products have the excellent adhesive strength,clear surface,natural film colour. This machine can save flim to the greatest extent.It is a multifunction machine can do many other materials


2.Product Parameter (Specification) of the Positive and negative membrane press machine

Working surface

2580×1270×50mm

Pressure

Positive Pressure≤0.5Mpa Vacuum≥-0.095Mpa

Dimension

10080×2140×2150mm

Power

 45kW

Weight

13T

Voltage

380V 50HZ  (Can order)

Warranty

1 year



3.Product Feature And Application of the Positive and negative membrane press machine

1) The Positive and negative membrane press machine is PLC touch screen,operationis optional simple and precise .
2) Double working tables,save time and efficient.
3) The machine have positive and negative.
4) This machine is suitable for covering PVC film on the surfaces of all kinds of plate type furniture, sound boxes and ornamental materials etc.
5)Particularly it is used to covering on concave and convex line and various shape edge surface.
6)It is the ideal equipment in interior design.



Positive And Negative Membrane Press Machine



4.Product Details of the Positive and negative membrane press machine

1Machine structureThe Positive and negative membrane press machine frame board all choose whole steel plate,stable and durable。

Positive And Negative Membrane Press Machine

2)Electric partsAll the key components of electrical system adopts Schneider and Omron brandlong service time.

Positive And Negative Membrane Press Machine

3)Slicon sheet:when the Positive and negative membrane press machine make complete membrane,silicone board only play the role of warm.positive pressure working without silicone board but small piece membrane.


4)Vacuum pump:The vacuum pump performance could match the Europe brand,and its main parameter have over the Germany products .the pump head adopts low alloy cast iron ,higher abrasion resistance and corrosion resistance.

Positive And Negative Membrane Press Machine

5)Control system:Operation system PLC, control interface originally from Japan with advanced technology and highly automatic.



5.Product Qualification of the Positive and negative membrane press machine

The Positive and negative membrane press machine with CE certificate.



6.Deliver,Shipping And Serving of the Positive and negative membrane press machine

The standard packing of the Positive and negative membrane press machine is foam,can order wooden box .



7.FAQ

Q1.Warranty

12 months warranty is effective from the date of acceptance of the machine.

Q2. Payment Terms

TT 30% down payment, 70% before shipment.

Q3. Delivery Time

15-30 working days from the receipt of the down payment.

Q4. Technical Support

Every machine is assigned by a specialist. The response is available within troubleshoot and solve problems on line.

Q5.Demo and Testing

In order to built a training center for the clients and employees to study the machines operation. You are welcome to visit our factory anytime for the machines’demo. Furthermore, we could run the machine with the materials provided by you and help you achieve your business efficiently.

Q6.Door-to-door service

We can offer door-to-door service if you need for payment.
